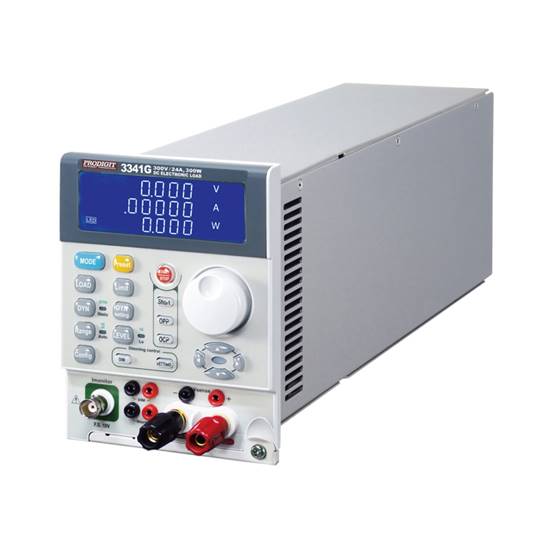

3341G LED DC Electronic Load Simulator
300V, 24A, 300W
Description
Each 3340G
Series module has its own control and display panel, LED/CC/CR/CV/CP/ Dynamic
modes, plug in 3300F with 150 sets Store/Recall memory which provides load
set-up more efficiently，also can be controlled intranet via
RS232、Ethernet、USB and GPIB interface.
Short circuit
test by external relay (there is an optional fixture for short), Short Time can
be set and Short Voltage can be measured.
Built-in dimming
control signal output is for PWM dimming test.
Simulate LED forword Bias voltage (Vd) and
Resistance (Rd).
Programmable
Load ON/OFF voltage, GO/NG meter check, Voltage meter display “ + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much
advance feature for each different application.
150 sets test
parameter and status storage function can call the storage memory real time in
accordance with the auto sequence requirement.
Features
LED mode load for LED Power Driver test.
CC, CR, CV, CP, LED and Dynamic
mode.
Simulate LED Forward Bias Voltage (Vd)
and Resistance (Rd).
Not only CC, CR, and CP mode have parallel operation
functions, but CV mode also has parallel operation functions.
Fast Response for PWM dimming
test.
Built-in dimming control signal for PWM
dimming test.
Short circuit test by external relay (built-in short
relay driver circuit).
5 digital V / A / W Meter.
Protections against V, I, W, and ℃.
Must be configured in 3302G〔single channel mainframe〕、3305G〔two channels mainframe〕or 3300G〔four channels mainframe〕and the mainframe with 150 sets Store / Recall memory.
Optional Interface：GPIB、RS232、USB、LAN.
Voltage can be increased to 600V（option）
The power input dimming frequency of 3345G & 33402G
is up to 25KHZ that is the fastest and widest of bandwidth electronic load in
the market.
The dimming control output of 3345G & 33402G is
DC-10KHZ
New
waveform generator plug in model 9923 adds user
programmable battery dischargecurrent waveform simulation to Prodigit DC Loads

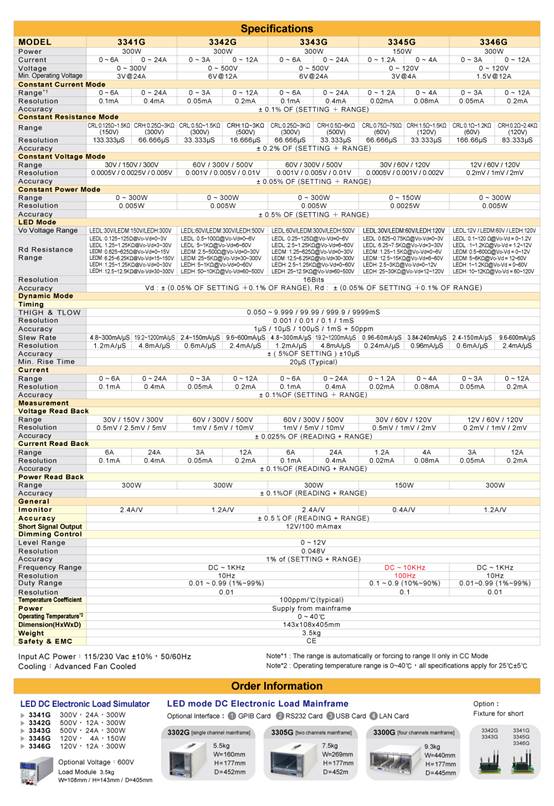

Specifications
